Welded Gabion Box

Home >  Products >  Gabion Box >  Welded Gabion Box

Hot-Dip Galvanizing Gabion Boxes Decorative Welded Steel Wire Mesh for Landscape Design Plain Weave Mesh Bending Cutting Welding

Description
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-13
Product Specification
Wire diameter
Norminal Box Sizes(m)
Mesh Wire
Selvage Wire
Tie Wire
Mesh Opening(mm)
2*1*1

2.2

2.7

3

3.05

3.2

3.7

3

3.4

3.8

3.9

4





2.2

60*80

80*100

80*120

100*120


3*1*1
2.7
3.4
80*100
4*1*1
3
3.8
80*120
5*1*1
3.05
4
100*120
2*1*0.3
3.2
6*2*0.3
3.7
6*2*0.2
6*2*0.13
6*2*0.15
All sizes can be customized according to your request.
Material
Galvanized low carbon steel wire

Wire diamater
Mesh wire: 2.0mm-4.0mm
Selvadge wire:3.4mm,3.8mm
Lacing wire:2.2mm,2.5mm
Mesh size
8*10mm,10*12mm or customize
Gabion size
1*1*1m,2*1*1m,3*1*1m,4*1*1m,6*2*0.3m or customize
Surface treatment
Hot dipped galvanized, PVC coated
Characteristics
Easy to install, rust prevention, corrosion prevention, low cost,high safety and less goods to be transported.
Usage
Water or flood control and guidance, prevention of rockbreakage, coastal area protection projects, road protection.
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-14

Galvanized welded gabion


product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-15

PVC coating gabion


production process
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-16
Our Advantages
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-17
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-18


Mounting connections such as hog rings, clips and hook also available as below :
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-19
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-20
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-21
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-22

How to install welded gabion box?

1. Erect ends, diaphragms, front and back panels on the bottom section of gabion.
2. Fasten each parts of gabion through the mesh opening in adjacent panels with spiral wires, C ring, U clip and other connection method.
3. Install the stiffeners. The stiffeners shall be places across the corners, at 300 mm from the center. Providing a diagonal
bracing and crimped over the line and cross wires on the front and side faces. It is no need n the interior cells.
4. Fill the welded gabion with stones, sands, soils, woods and other materials.
5. Close the lid and secure in the same way with the step 2 connection method.
6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-23

Installation preparation.


product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-24

Erecting the components of welded gabion.


product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-25

Fasten each parts of welded gabion with spiral wire.


product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-26

Install the stiffeners.


product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-27

Fill the welded gabion with stones.


product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-28

Install the lid to the welded gabion and project completed.

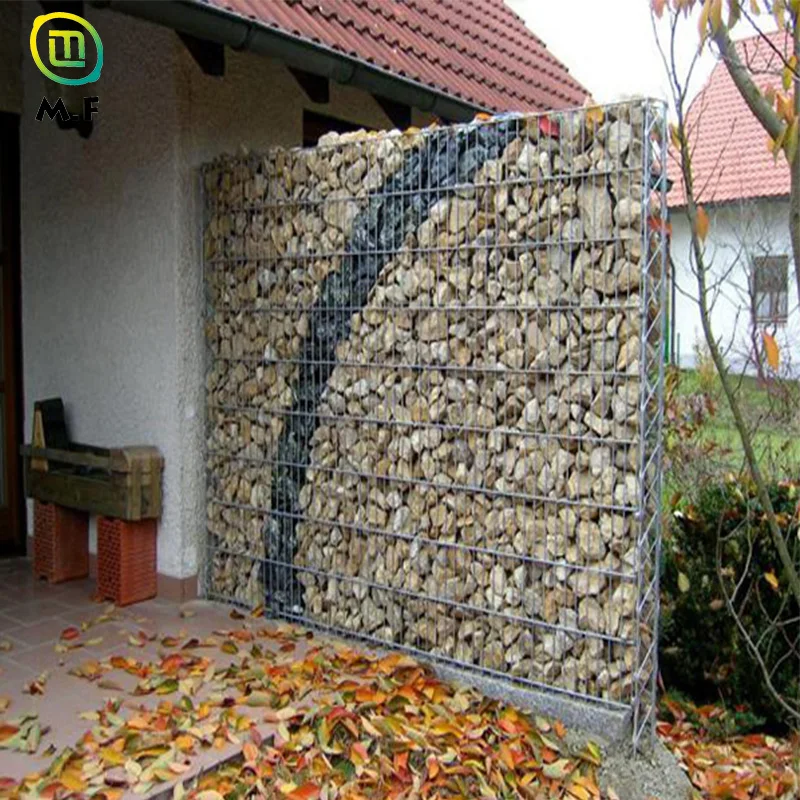

Product case
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-29
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-30
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-31
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-32
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-33
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-34
Gabion box can be used for slope support, foundation pit support, mountain rock surface hanging net grouting, slope planting (greening), railway highway isolation shield, it can also be made of cage, net pad, for rivers, DAMS and seawall anti-erosion protection, reservoirs, river interception with nets

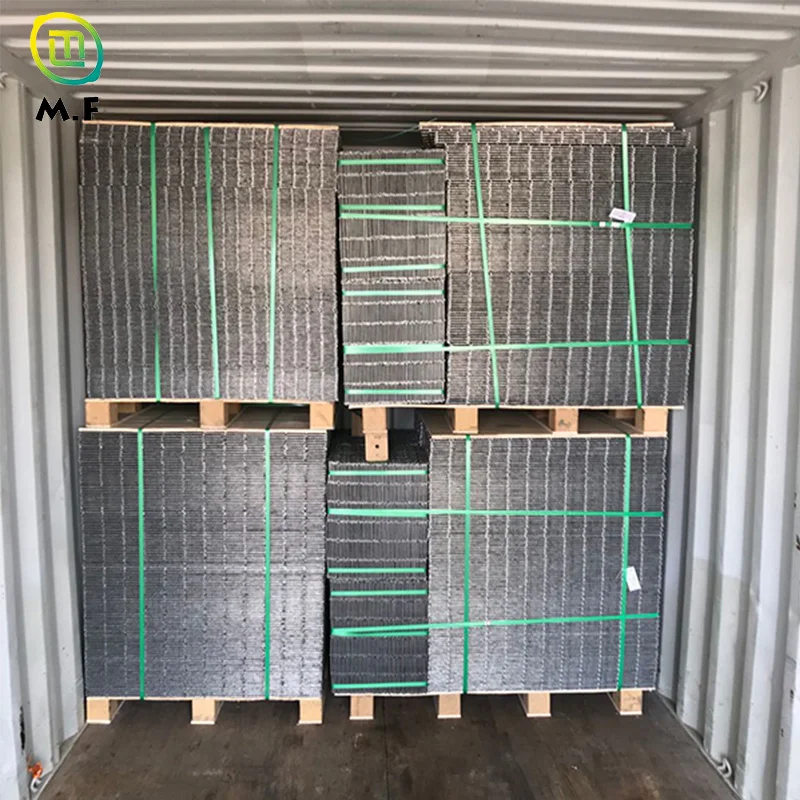

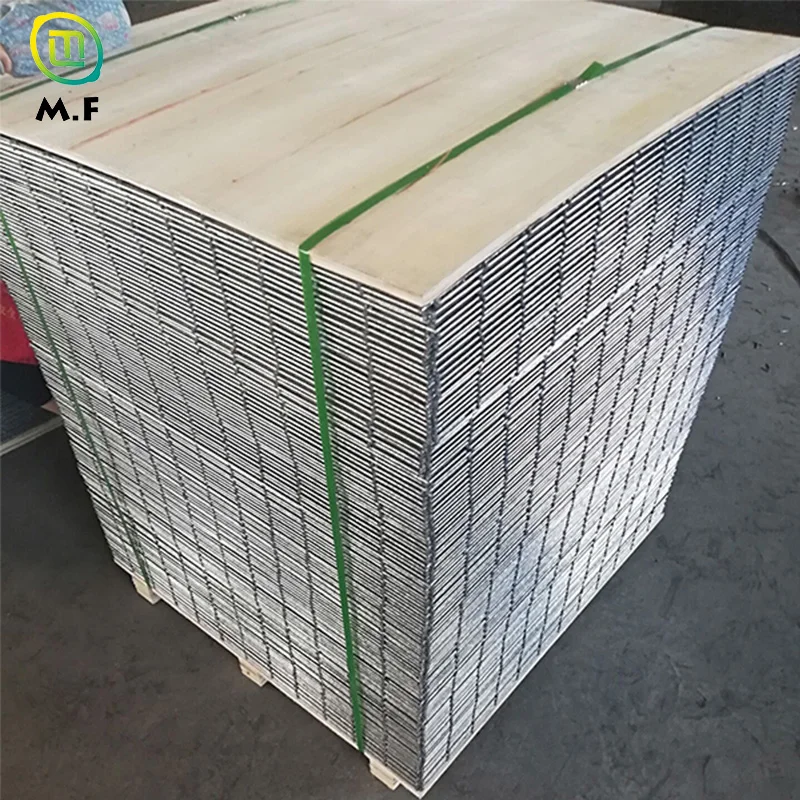

Product packaging
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-35
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-36
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-37
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-38
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-39
1. Nude package,compacted before packaging.
2. 50pcs/bundle with labels.
3 .Customized.according to the customers' requirement.
Exhibition
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-40
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-41
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-42
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-43
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-44
We are becoming the leading enterprises in wire mesh field. We main exporte to the United States, Germany, Japan, Canada,
Southeast Asia, the Middle East, Africa and other countries.

product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-45
OUR CERTIFICATE
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-46
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-47
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-48
product hot dip galvanizing gabion boxes decorative welded steel wire mesh for landscape design plain weave mesh bending cutting welding-49
FAQ
Q:Are you factory or Middleman?
A:Yes, we have been in providing the professional products in wire mesh more 10 years.

Q: Can youoffer free sample?
A:Yes, but usually the customer need to pay the freight.

Q:Can I customize the products?
A:yes, as long as provide specifications, drawings, can only do what you want products.

Q: How about the delivery time?
A:Usually within 15-20days,customized order may need longer time.

Q:How many days you need to produce one container fence?
A:Production Time: 12-15 days for one container.
