Bastion Barrier

Home >  Products >  Bastion Barrier

Galvanized Wire Explosion-Proof Bastion Barrier Woven Technique Gabion Mesh for Fortress Wall Plain Weave Application

Description

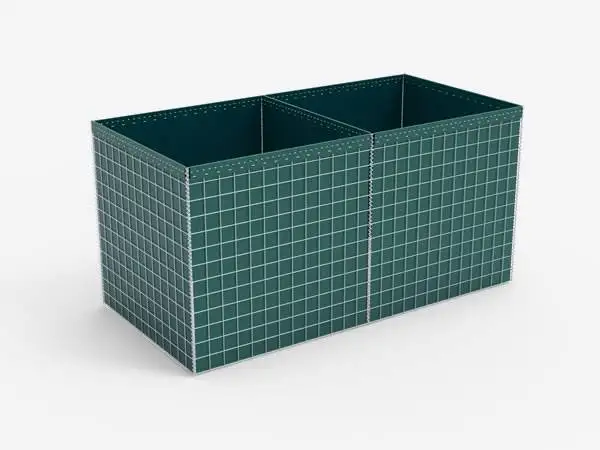

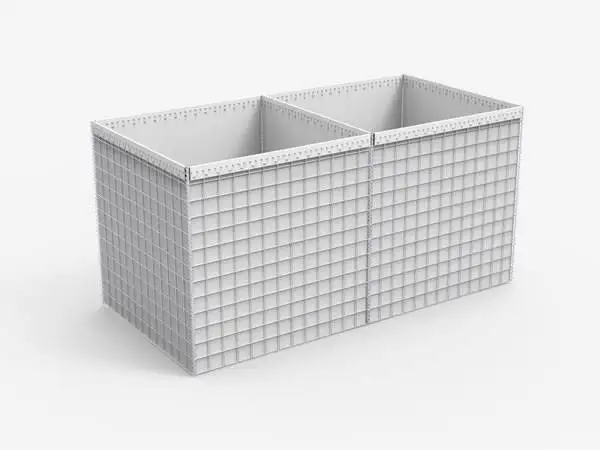

MaiFa  Bastion Barrier
Defensive bastion barriers are regarded as the most significant development in field fortifications since the second World War.
They are effective and economical structures to protect safe of soldiers, vehicles, equipment and facilities in military sites,peacekeeping, humanitarian and civilian operations.

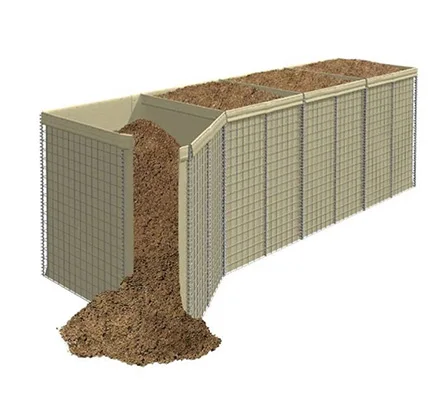

Defensive barriers are strong structures which are composed of welded gabions and non-woven polypropylene geotextile.
According to different use environments, the defensive barriers can be made into standard and recoverable types for your choice.
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-13
Common Available Colors
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-14

Beige

Colors can be customized
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-15

Green


product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-16

White


Specification
Material
 hot-dipped galvanized steel wire or zinc-aluminum alloy steel wires
Wire diameter
4.0mm-6.0mm
Mesh size
50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm, 50 × 100 mm, 100 × 100 mm, etc.
Geotextile
2 mm heavy duty non-woven polypropylene
Non-woven fabric weight:
250g-300g/m2
Delivery Time
10-15 days
Geotextile color
White, beige, Military Green and other customized colors.
Service
3D modeling, 3D sample models, instruction book, video of installation
Defensive Barrier Assembly
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-17


Unload the defensive barrier and place one unit in the desired location
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-18

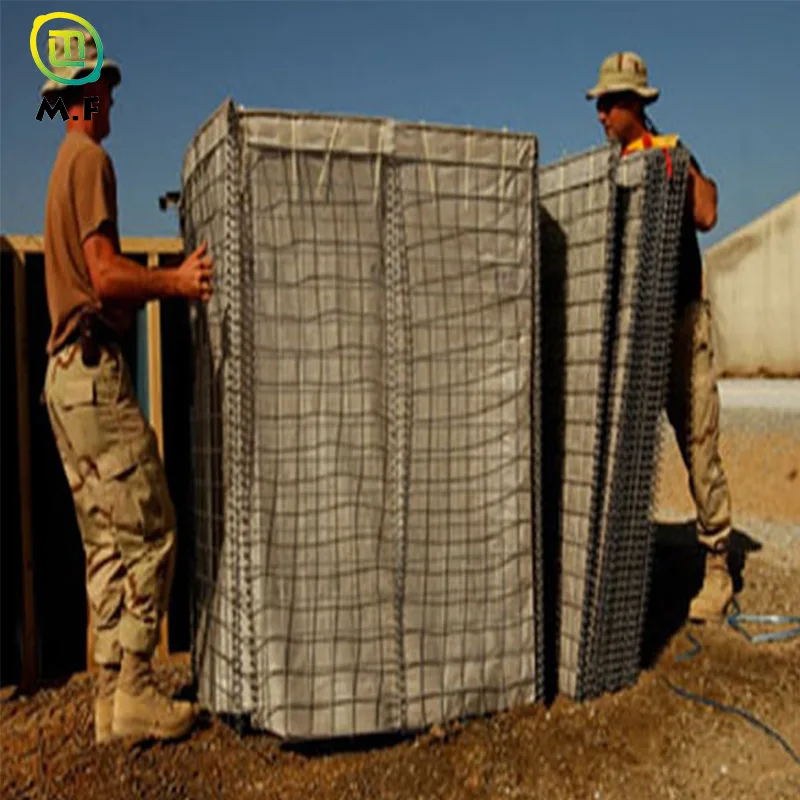

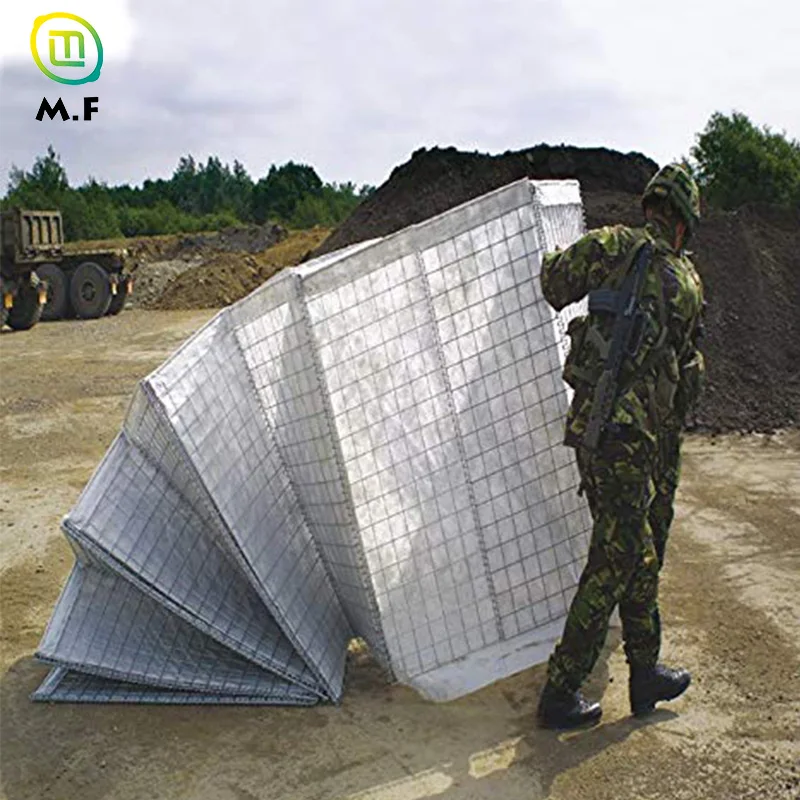

Pull up and stretch. It is very easy to do this because the integrate structure.
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-19

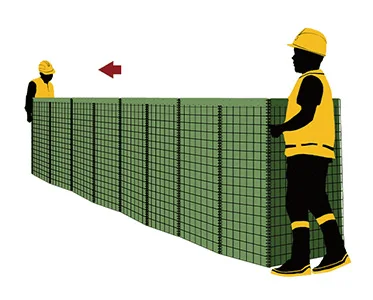

Pull out and check the position of defensive barrier.
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-20

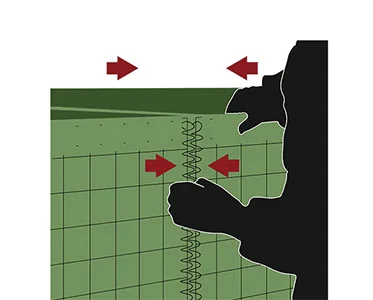

Joining – Butt Together

Join defensive barrier unit into desired length.
Butt together the units to be joined, overlap them and interlock the coil on each butted corner.
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-21

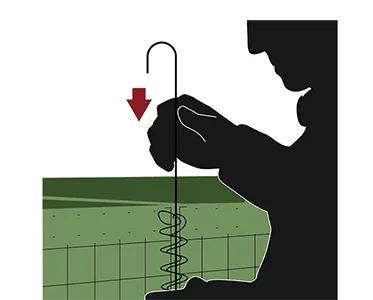

Joining – Place Joining Pins

Insert the joining pin through the overlapped coils, ensuring that it connects the coils fully and that it is fully Inserted. The
joining pins are supplied with defensive barriers.
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-22

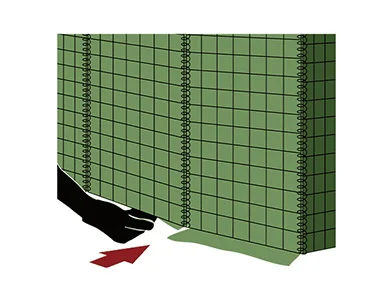

Tuck in Flaps at Base

All geotextile flaps at the base of the unit should be tacked in before filling for maximum stability and durability.

Notes

1. All units should be horizontally aligned before joining.
2. Only when all the cells are joined can we start to fill.
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-23

Fill the Cell

Fill containers with materials by excavators and pull out panel centers around 100 mm (4") after filling.
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-24

Compact the Material

Spread and compact the material every 300 mm (1 foot) of filling.
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-25

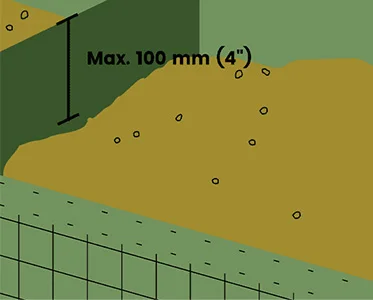

100 mm from the Top

If you need the upper units, just fill the bottom unit to maximum 100 mm (4") from the top.
Advantages
Secure & reliable
Once filled with soil, sand or gravel, Securest forms a solid and strong barrier with exceptional strength and structural
integrity to protect personnel and equipment from enemy fire. For example:
* Two feet thick Securest can be used to stop rifle bullets and shell fragments.
* Four feet thick Securest can prevent most car bombs.
* Five feet thick Securest is ideal for preventing penetration and explosion fragments from rocket propelled grenade.
Convenient usage
Securest bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.
Labor saving design
Securest can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.
Quick & easy assembly
MaiFa provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fill about 20 sandbags per hour. Yet our MaiFa do ten times the work.
Application
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-26

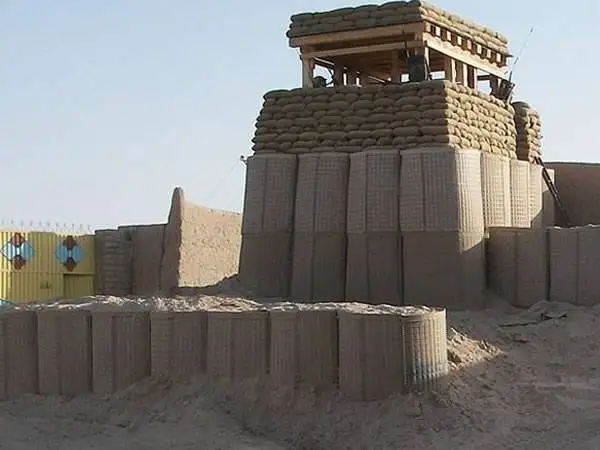

Sentry Tower Protection


product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-27

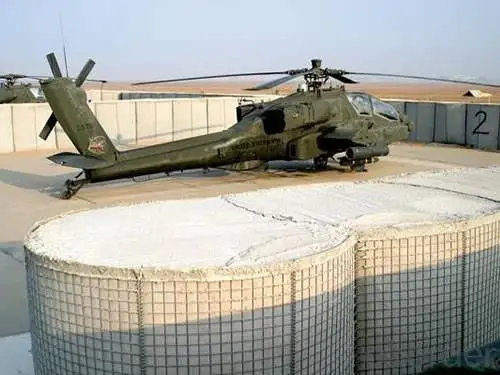

Aircraft Protection


product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-28

Living Accommodations Protection


product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-29

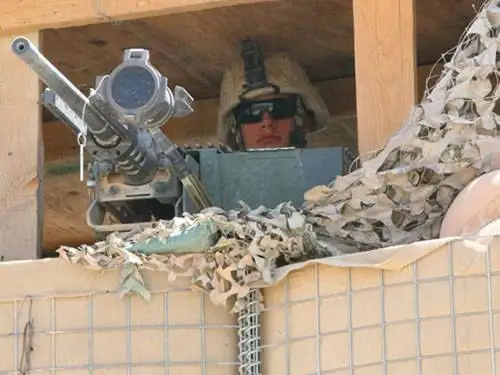

Guard Post Protection


product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-30

Personnel Safe Protection


product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-31

Vehicle Protection


Packing And Delivery
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-32
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-33
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-34
CUSTOMER VISITS
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-35
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-36
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-37
Company Profile
MaiFa is a large enterprise integrating industry and trade, and its products strictly comply with ISO9001:2008 international quality standards.
Our company after years of research and innovation, product innovation, adhere to technological innovation, scientific management, integrity management. Xenteng wholeheartedly for domestic and foreign customers to provide quality products and good service, work together, and seek common development!
My company is willing to cooperate with colleagues from all walks of life to create a better tomorrow.
product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-38

Factory exterior


product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-39

Factory interior


product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-40

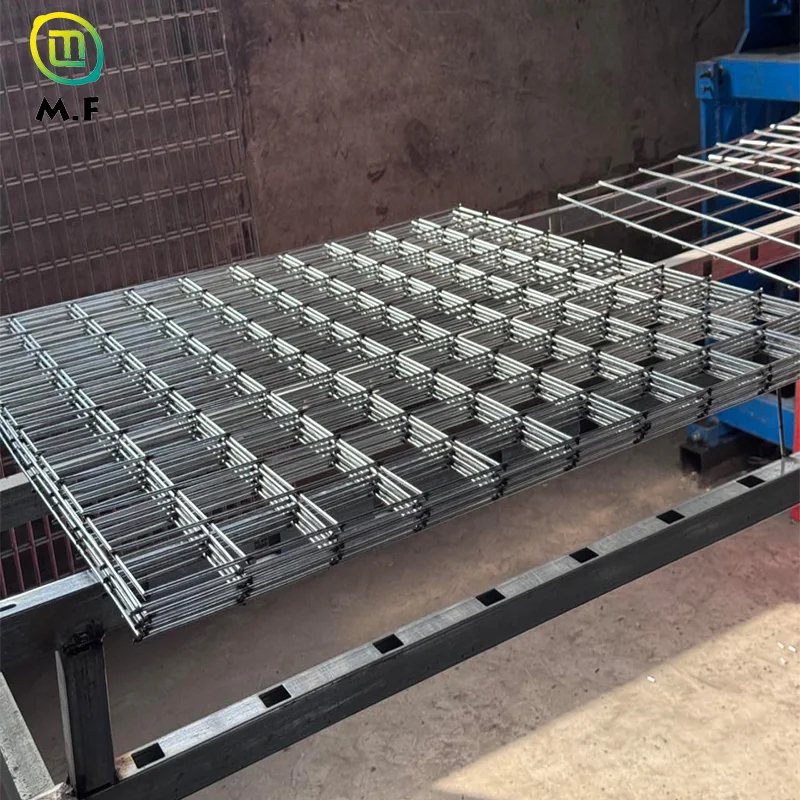

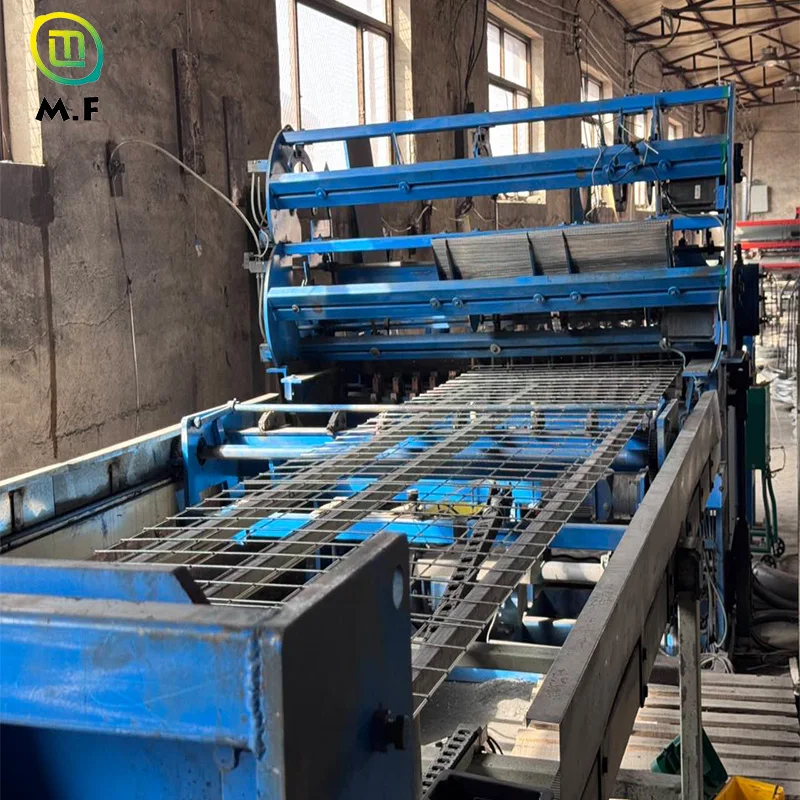

Production machine


product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-41

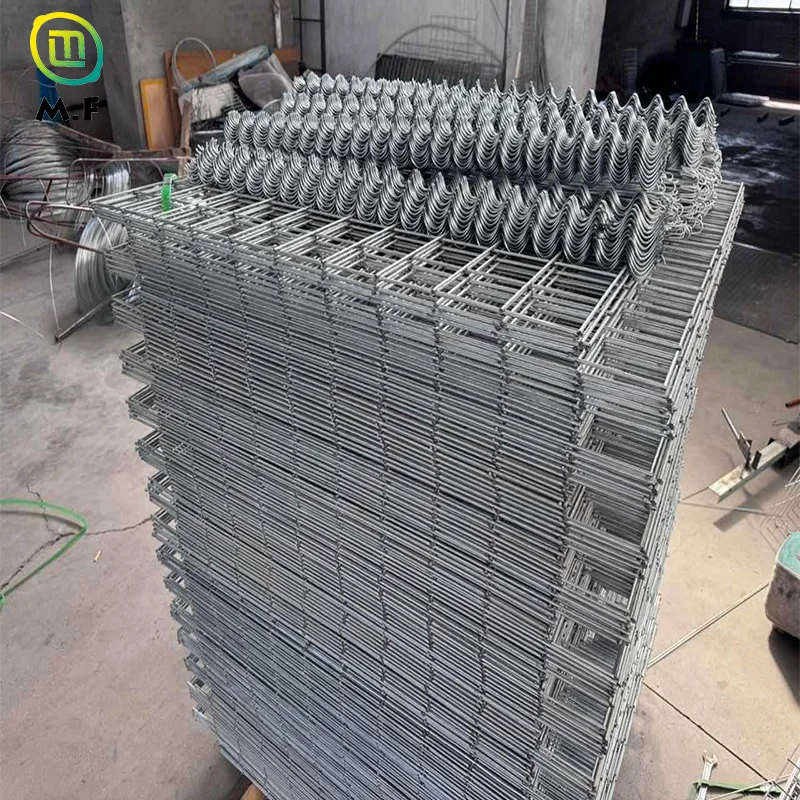

Finished product


product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-42

Stash


product galvanized wire explosion proof bastion barrier woven technique gabion mesh for fortress wall plain weave application-43

Packing


FAQ
Q: Are you a manufacturer? A: Yes, we have more than 13 years' experience in this field. Q: How do you see your customers? A: They are not only our customers, but also our partners, we will develop together, win-win cooperation. Q: Do you only sell products? A: We not only sell products, but also provide services, we have a perfect after-sales service system. Q: Do you provide samples? A: The sample is provided free of charge, but the customer has to pay the postage. After the customer orders, we will deduct the postage from the payment. Q: What information should I provide if I want the lowest quote? A: Product specifications, such as size, color, packing, quantity, etc.
